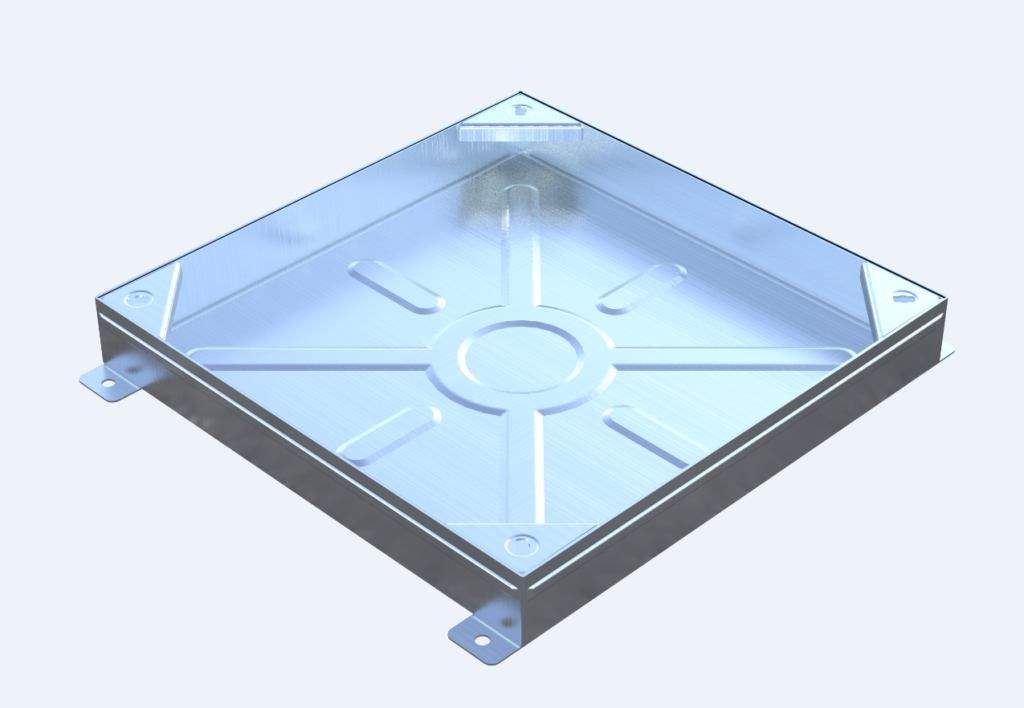

Recessed block paving covers are made from galvanised mild steel and can be made to any size and depth to suit the size of the block paving or flag you are using. They are available in various weight loadings from light to heavy duty and are designed to give manhole covers a more discreet appearance in block paved or flagged areas.
Recessed Steel Covers For Block Paving
Domestic Range
Ideal for driveways and pedestrian zones with occasion light vehicular traffic these covers are very popular in new build housing schemes.
Key Features
- UK designed and engineered
- Aesthetically pleasing finish
- High slip resistance when filled
- Traditional manhole lifting points
Product Specification
| Loading | Clear Opening (mm) | Recess Depth (mm) | Product Code |
|---|---|---|---|
| 10T | 450 x 450 | 80 | SPAV454580 |
| 10T | 450 x 450 | 100 | SPAV454510 |
| 10T | 600 x 450 | 80 | SPAV604580 |
| 10T | 600 x 450 | 100 | SPAV604510 |
| 10T | 600 x 600 | 80 | SPAV606080 |
| 10T | 600 x 600 | 100 | SPAV606010 |
| 10T | 675 x 675 | 100 | SPAV676710 |
| 10T | 750 x 600 | 100 | SPAV756010 |
| 10T | 750 x 750 | 100 | SPAV757510 |
| 10T | 900 x 600 | 100 | SPAV906010 |
| 10T | 900 x 900 | 100 | SPAV909010 |
As part of our ongoing commitment to product development we reserve the right to change all or part of our product design without notice.

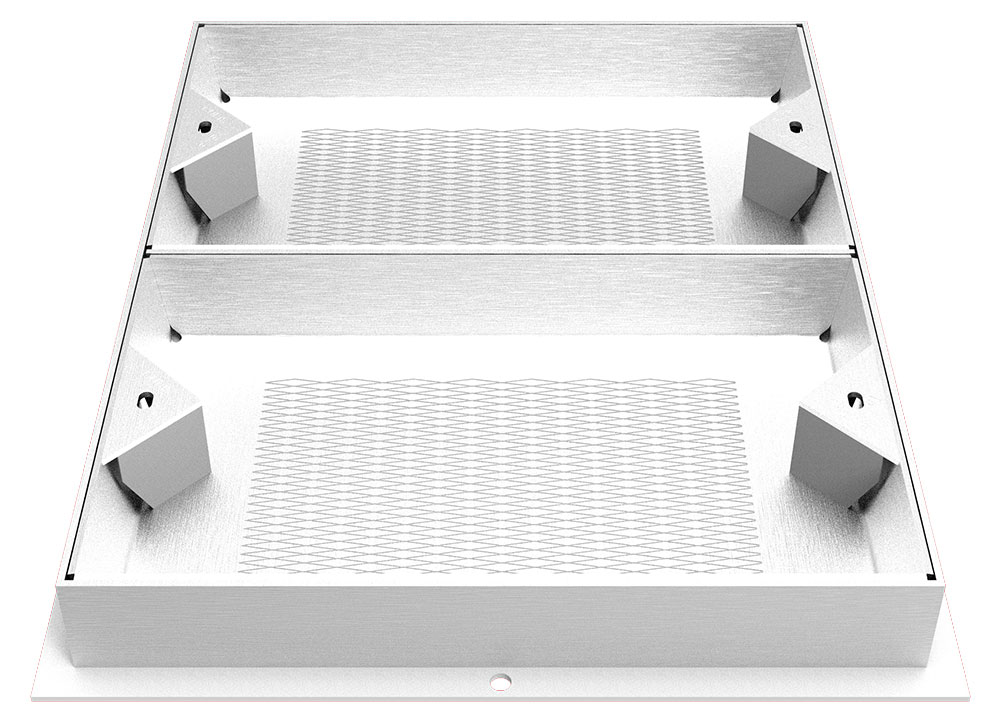

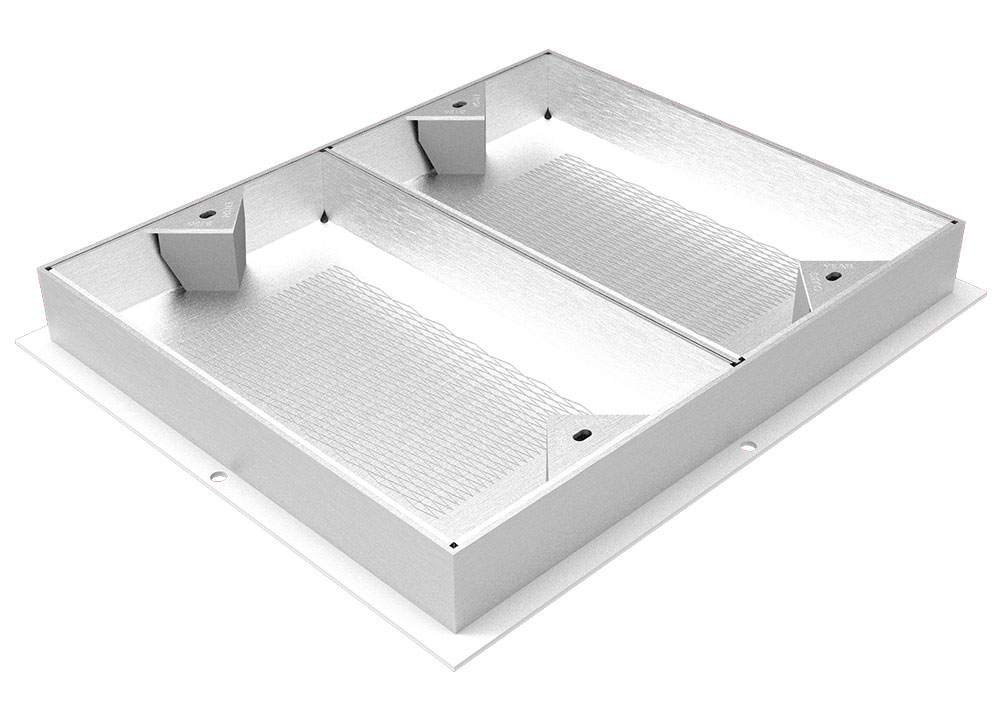

Commercial Range
For supermarket car parks, shared surfaces within housing estates and shopping precincts. The design of the cover is much the same as the domestic range but they are made from a heavier gauge steel and have additional strengthening under the lid.
We keep a smaller range in stock but can make any size to order including multiple lid units such as 1220×675 clear opening.
Key Features
- UK designed and engineered
- Aesthetically pleasing finish
- High slip resistance when filled
- Traditional manhole lifting points
- Heavy duty 6mm material
Optional Extras
- Rubber Seals
- Services stamped on lifting bosses
- Bespoke sizes available on short lead time
Product Specification
| Loading | Clear Opening (mm) | Recess Depth (mm) | Product Code |
|---|---|---|---|
| 10T | 450 x 450 | 80 | SPAV454580 |
| 10T | 450 x 450 | 100 | SPAV454510 |
| 10T | 600 x 450 | 80 | SPAV604580 |
| 10T | 600 x 450 | 100 | SPAV604510 |
| 10T | 600 x 600 | 80 | SPAV606080 |
| 10T | 600 x 600 | 100 | SPAV606010 |
| 10T | 675 x 675 | 100 | SPAV676710 |
| 10T | 750 x 600 | 100 | SPAV756010 |
| 10T | 750 x 750 | 100 | SPAV757510 |
| 10T | 900 x 600 | 100 | SPAV906010 |
| 10T | 900 x 900 | 100 | SPAV909010 |
As part of our ongoing commitment to product development we reserve the right to change all or part of our product design without notice.

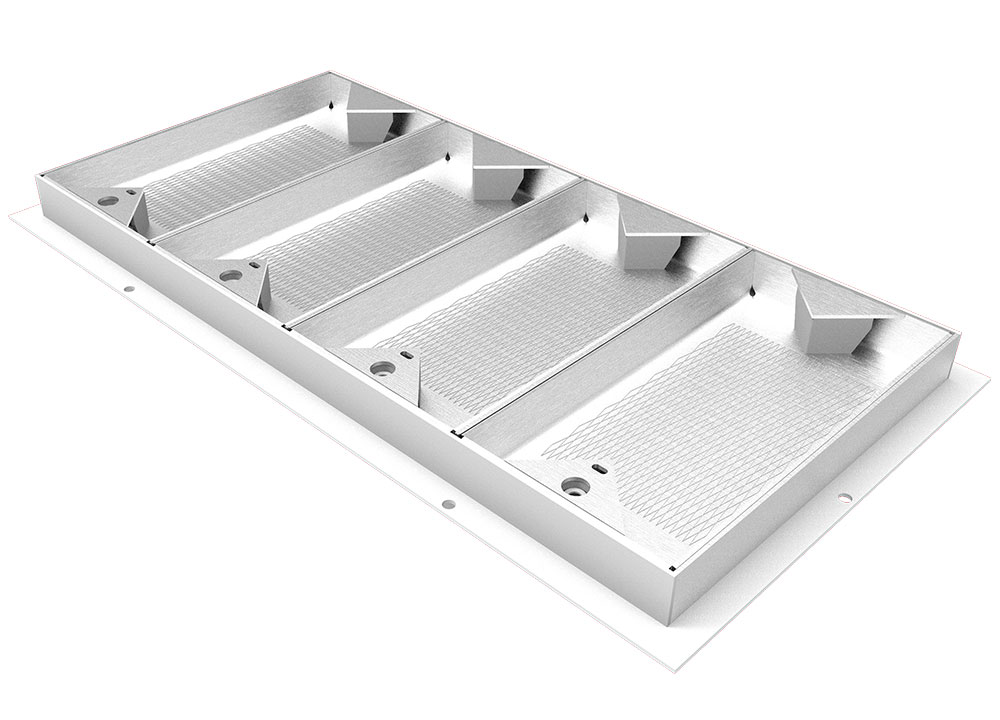

Telecom ‘Precinct’ Range
Telecom chambers differ in size to standard access chambers and there are different specifications for each network provider. Precinct covers are available in medium duty and heavy duty and can numerous additional features such network provider’s logo in the corner of each lid.
Key Features
- UK designed and manufactured
- Slide-out design for easy handling
- Anti-slip when infilled
- Third Party Accredited to B125
- Heavy duty 6mm construction
Optional Extras
- Covers can be locked with standard or high security locking systems
- Security sub-frames for network protection
Product Specification
| Loading Options | Clear Opening (mm) | Recess Depth (mm)Options | Network Options: | |||
|---|---|---|---|---|---|---|
| 12.5T (B125) | 44T (FACTA D) | 725 x 255 | 63 | 80 | 100 | BT, VM, CATV, SSE, SPEN, VERIZON |
| 12.5T (B125) | 44T (FACTA D) | 915 x 445 | 63 | 80 | 100 | |
| 12.5T (B125) | 44T (FACTA D) | 610 x 610 | 63 | 80 | 100 | |
| 12.5T (B125) | 44T (FACTA D) | 960 x 610 | 63 | 80 | 100 | |
| 12.5T (B125) | 44T (FACTA D) | 1310 x 610 | 63 | 80 | 100 | |
| 12.5T (B125) | 44T (FACTA D) | 1690 x 710 | 63 | 80 | 100 | |
| 12.5T (B125) | 44T (FACTA D) | 2285 x 710 | 63 | 80 | 100 | |
As part of our ongoing commitment to product development we reserve the right to change all or part of our product design without notice.
